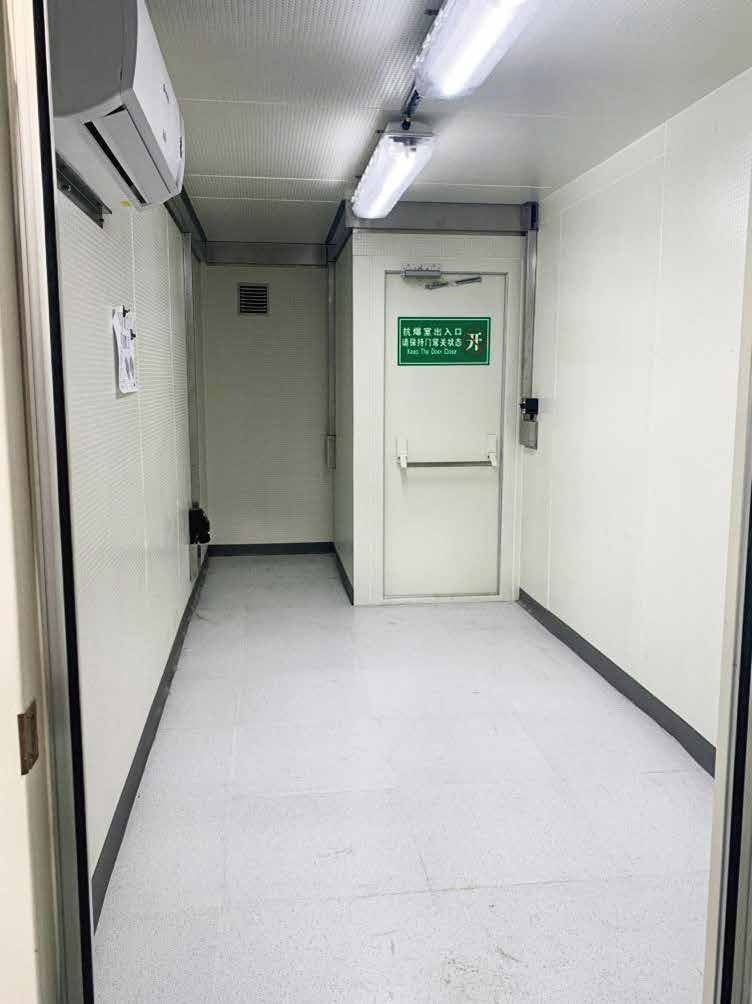

Enclosure & Airlock
Airlock entrances with air curtains, an envelope specified to leakage class L1 under EN 1886, and positive pressure at setpoints of 50 / 100 Pa.
Home › Specialized Modular Buildings › Toxic Gas Refuge
Specialized Modular Buildings

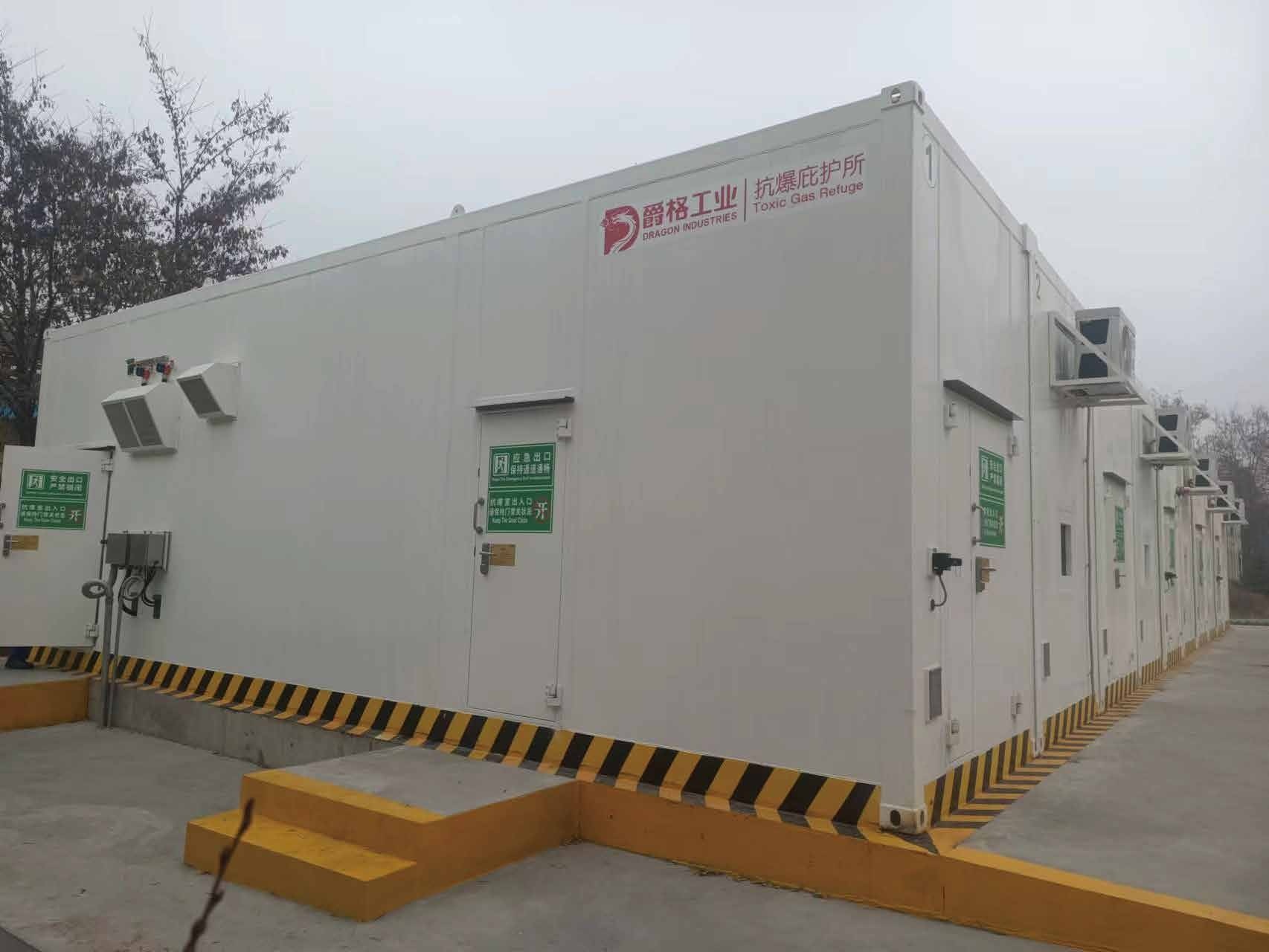

Toxic Gas Refuge
Protected refuge during toxic gas incidents.
A Toxic Gas Refuge (TGR) provides a shelter-in-place area during a major gas release. HVAC, positive pressure, breathing air and monitoring systems support personnel protection while the site manages the incident and evacuation.
Discuss Your Module →
Integrated Systems
Product configuration
HVAC & Gas Detection
Hazardous-area HVAC with monitoring and shutdown, toxic gas detectors and coordinated safety controls.

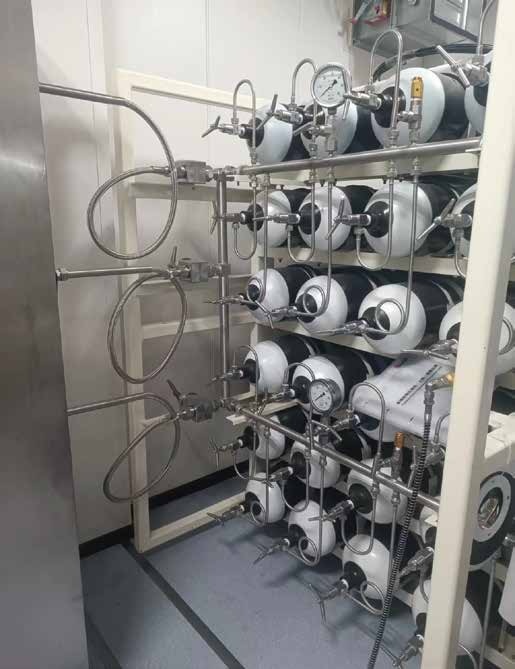

Breathing Air System
High-pressure breathing air storage, up to 300 bar, with a pressure release panel and personal protective equipment.
Product Specifications
Design parameters
| Item | Configuration |
|---|---|
| Protection duration | 1–4 hours or longer, sized for the incident scenario |
| Occupancy | Customized layout, up to 500 persons |
| Blast design | Up to 10 psi or other specified criteria |
| Fire performance | 2-hour resistance / thermal insulation and 4-hour integrity |
| Design environment | −20°C to +55°C |
| Coating | CX environment under ISO 12944 |
| Design life | Up to 15–20 years |
Performance, dimensions and approvals are specified for the project design basis and selected module.
Configuration & Approvals
Defined for your operating requirements.
Options & Interfaces
CO₂ scrubbing, PA/GA, telecommunications, CCTV, UPS and batteries, sand trap louvres or inertial filters, and furniture.
Design Basis
Designs can meet ASCE, DNV 2.7-1 or other specified codes. The site hazard assessment, required occupancy and refuge duration establish the project design basis.
MDOW Project Coordination
MDOW coordinates technical clarification, equipment interfaces, modular supply scope and delivery with the specialist manufacturing resources.
Product Views
From layout to integrated module.
Define your module requirements.
Share the site conditions, operating duty, layout and required interfaces with MDOW.
