Laboratory Fit-Out

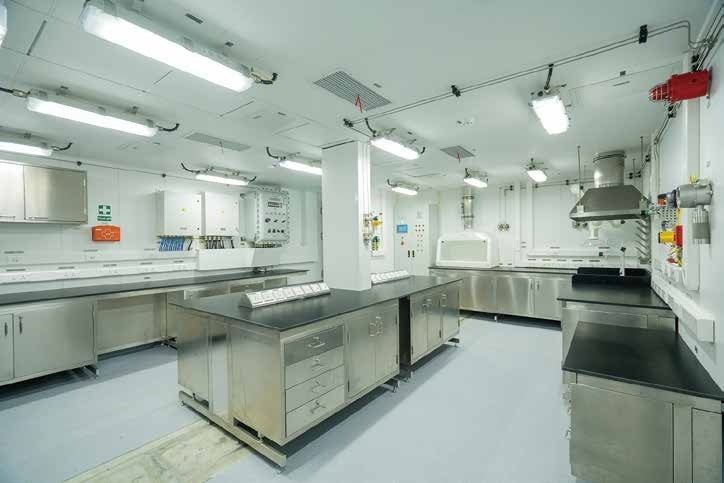

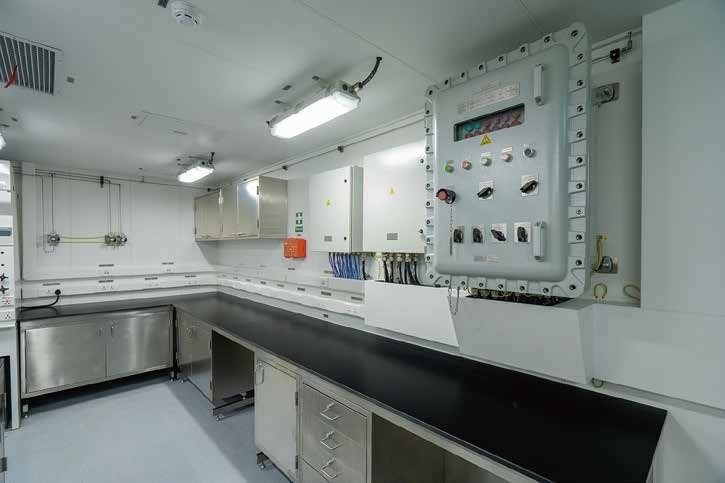

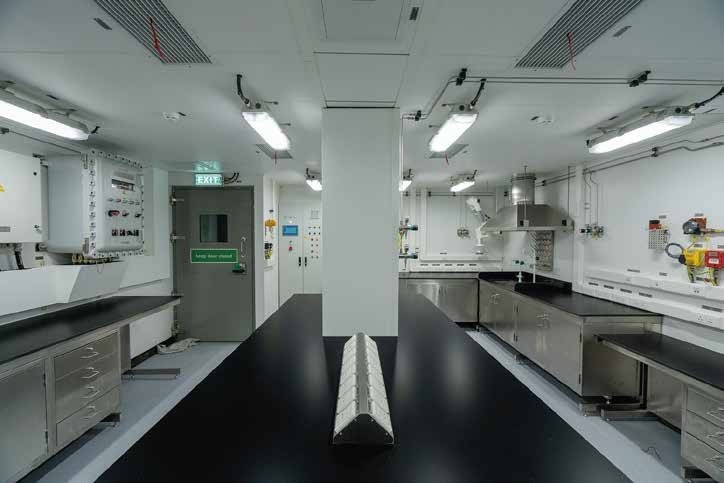

Workstations, storage, IT racks, sinks and fume hoods arrive integrated. Hot and cold water piping supports the selected laboratory equipment.
Home › Specialized Modular Buildings › Offshore Modular Labs
Specialized Modular Buildings
Offshore Modular Labs

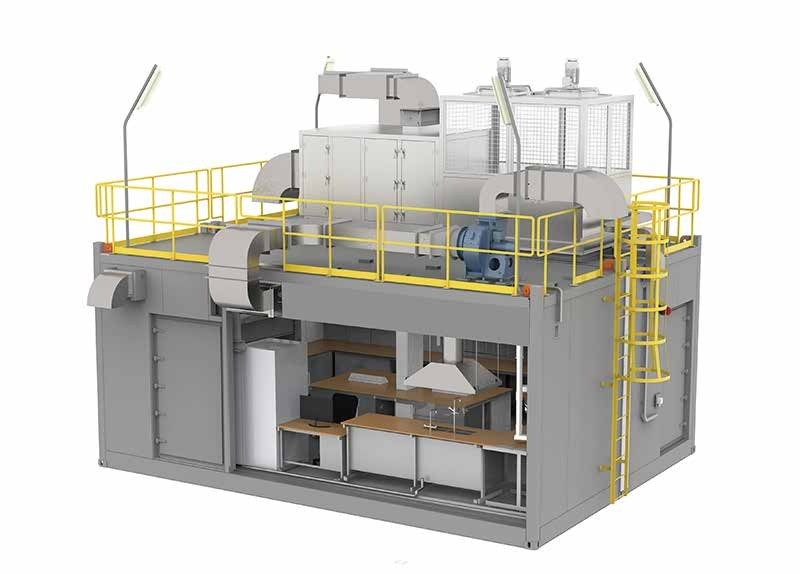

A complete laboratory, integrated before shipment.
Offshore modular laboratories combine laboratory layout, structural design, HVAC, fume extraction, plumbing and electrical systems in a pre-furnished package. Defined utility connections support installation at the offshore facility.
Discuss Your Module →
Integrated Systems
Product configuration
Ventilation & Pressure Control
100% fresh air HVAC, dual-stage heating and cooling, differential pressure sensing, flow monitoring and pneumatic fire dampers support the room environment.
Fire, Gas & Communications
A60 access and emergency doors, smoke and gas detection, external monitoring interfaces and PA/GA support the building safety functions.
Product Specifications
Design parameters
| Item | Configuration |
|---|---|
| Module arrangement | Two interconnected units, overall 8,000 × 6,000 × 3,500 mm (L × W × H) |
| Hazardous area | Zone 2, Gas Group IIA / IIB |
| Blast load example | 80 kPa for 100 ms |
| Fire rating | A60 FTP SOLAS |
| Electrical supply | Three-phase 220–690 V, 50 / 60 Hz |
| Room pressure | Main rooms >50 Pa, airlocks >30 Pa |
| Ventilation | 100% fresh air |
| Marine coating | Three-coat system, up to CX |
Performance, dimensions and approvals are specified for the project design basis and selected module.
Configuration & Approvals
Defined for your operating requirements.
Options & Interfaces
Laboratory equipment, workstation arrangements, IT and communications interfaces, water services and fume extraction are coordinated to the required analytical duties.
Design Basis
Approval and testing requirements can include ABS, DNV 2.7-3, EN 12079, A60 SOLAS and CE marking. Applicable approvals and the supplied documentation are defined for the selected project configuration.
MDOW Project Coordination
MDOW coordinates technical clarification, equipment interfaces, modular supply scope and delivery with the specialist manufacturing resources.
Product Views
From layout to integrated module.
Define your module requirements.
Share the site conditions, operating duty, layout and required interfaces with MDOW.
