Modular Metering, Control & SafetyTRUCK & RAIL
LOADING / OFFLOADING

Integrated packages that connect accurate mass-flow measurement, controlled batch transfer, safety interlocks and terminal business systems in one engineered loading solution.

Endress+Hauser Measurement & Batch Control + MDOW Skid Engineering & Integration

Discuss Your Loading Project →Explore the System
From Order to Final TicketField equipment, automation, identity management and reporting coordinated as one transfer workflow.
◎Accurate
Batch Metering
↗Controlled
Flow Profile
✓Safety
Interlocks
▣Identity &
Access Control
◇Skid-Mounted
Delivery
⇄Business-System
Integration
Technology CooperationMDOW works with Endress+Hauser to deliver modular loading and offloading systems.

We use Endress+Hauser core metering, batch-control and diagnostic products and technologies, integrated with MDOW skid engineering, valves, piping, safety logic, automation interfaces and project delivery.

E+H Core Technology
MDOW Package Integration
Complete Loading Solution

One Package. One Controlled Transfer.

MDOW develops truck and rail loading / offloading systems around the complete operating sequence—not only the meter. The package coordinates field measurement, valves, grounding, loading arms, batch control and the data interfaces required by terminal operations.

Coriolis mass-flow measurement for accurate delivered quantity.
Low-flow start, full-rate transfer and controlled ramp-down.
Grounding, emergency stop and permissive-based interlocks.
Local batch authorization with offline operating capability.
Interfaces for DCS, ERP, weighbridge, access and queuing systems.
Fabricated, assembled and tested as a modular skid package.
Transfer Architecture

From Product Header to Loading Arm

The process train is configured around the fluid, loading rate, hazardous-area classification and terminal operating philosophy. Optional vapor return measurement can be added where required.

MEASUREMENTMass flow, pressure and optional differential-pressure monitoring.
CONTROLRegulating and shut-off valves execute the batch profile.
SAFETYGrounding, emergency stop and loading permissives protect transfer.
CONNECTIVITYBatch data is exchanged with terminal and enterprise systems.
01Loading Pump
02Mass Flowmeter
03Pressure Monitoring
04Control Valve
05Shut-off Valve
06Bottom Loading Arm
Optional vapor-return circuit: vapor line with mass-flow measurement can be integrated into the package.
Typical functional arrangement. Final equipment selection and piping configuration are project-specific.
Operating Workflow

Controlled From Dispatch Order to Final Record

The loading sequence can be linked with terminal logistics and safety processes so that authorization, transfer and reporting follow one traceable operating path.

01 PLANOrder & SchedulingImport the delivery order, assign the vehicle and manage the loading queue.
02 VERIFYAccess & SafetyConfirm driver, vehicle, training, inspection, weighbridge and access conditions.
03 CONNECTPrepare the BayManage keys, connect the loading arm and vapor return, and verify grounding.
04 AUTHORIZELoad the BatchUse card, code, QR or identity authorization to start the approved preset.
05 RAMP UPProtect the TransferStart at low flow, increase to the safe loading rate and supervise permissives.
06 RAMP DOWNFinish AccuratelyReduce flow near target, close the valves and account for overrun.
07 RELEASEDisconnect & WeighSecure equipment, return keys and perform final vehicle verification.
08 REPORTClose the TransactionSave batch data, issue documents and upload the completed transaction.

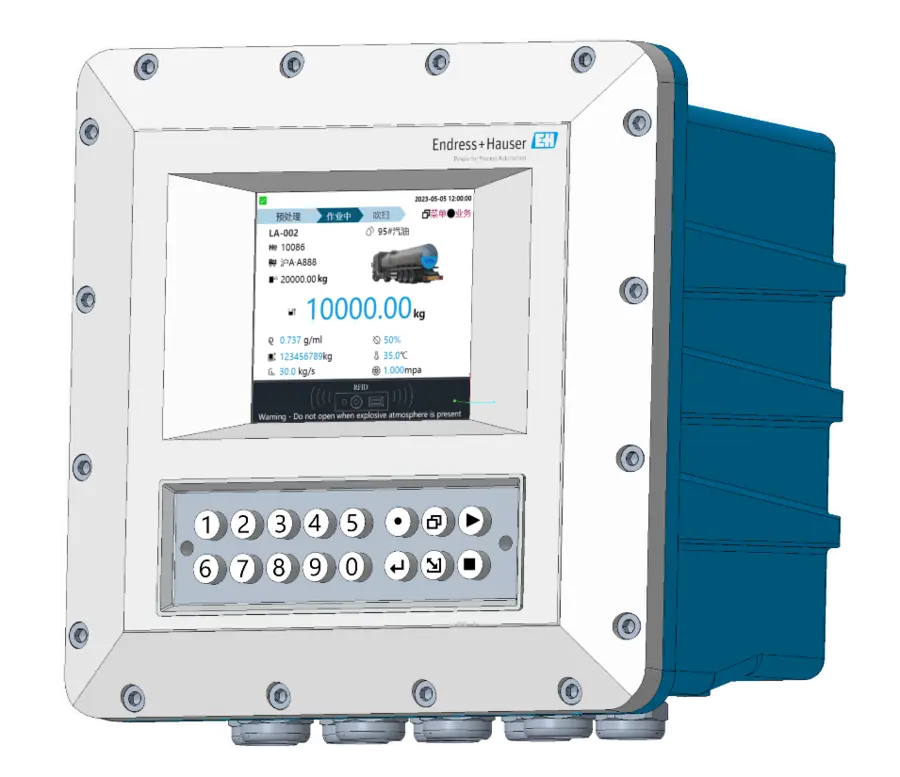

NXF582-X intelligent batch controller
Intelligent Batch Control Platform
Local Intelligence

Batch Control at the Loading Bay

The intelligent batch controller presented in the supplied Endress+Hauser system material combines operational control with business connectivity. IT and OT functions may operate independently or together, supporting controlled transfer even when upstream business systems are unavailable.

Local operationPreset transaction capability and offline loading control.
Operator interfaceColor display with stainless-steel keypad for industrial service.
AuthorizationID card, IC card, QR code and verification-code workflows.
Power conceptAC or DC supply with redundant-power support.
Communications4 × RS485, 2 × CAN and 1 × TCP/IP Ethernet interface.
Ex db IIB T6 GbExplosion-protection marking shown in source material
IP66Ingress-protection rating
SIL 2Functional-safety capability shown in source material
Terminal Integration

Connect the Bay to the Business

The system can exchange operating and transaction data with the terminal's automation, logistics and management platforms. Interfaces are selected around the existing site architecture and each party's responsibility.

DCS / Safety SystemsOperating status, alarms, permissives and shutdown information.
ERP / SAPDelivery orders, batch completion and commercial transaction data.
Operator StationMulti-bay supervision, control, alarm handling and trend review.
Business StationOrder handling, transaction management and document generation.
Terminal LogisticsQueuing, access control, vehicle checks, weighbridge and e-seal interfaces.
Meter ManagementWeb-based diagnostics, parameter review and meter performance analysis.
Modular Engineering

Designed as a Complete Loading Skid

MDOW translates the process and control concept into a coordinated modular package. The skid arrangement brings piping, instrumentation, valves, electrical interfaces and maintainability into one model before fabrication.

Process, piping and hydraulic design
3D layout and interface coordination
Structural base and access provisions
Instrumentation and valve integration
Control-panel and cable interfaces
Assembly, FAT and documentation
Explore Design & Engineering →

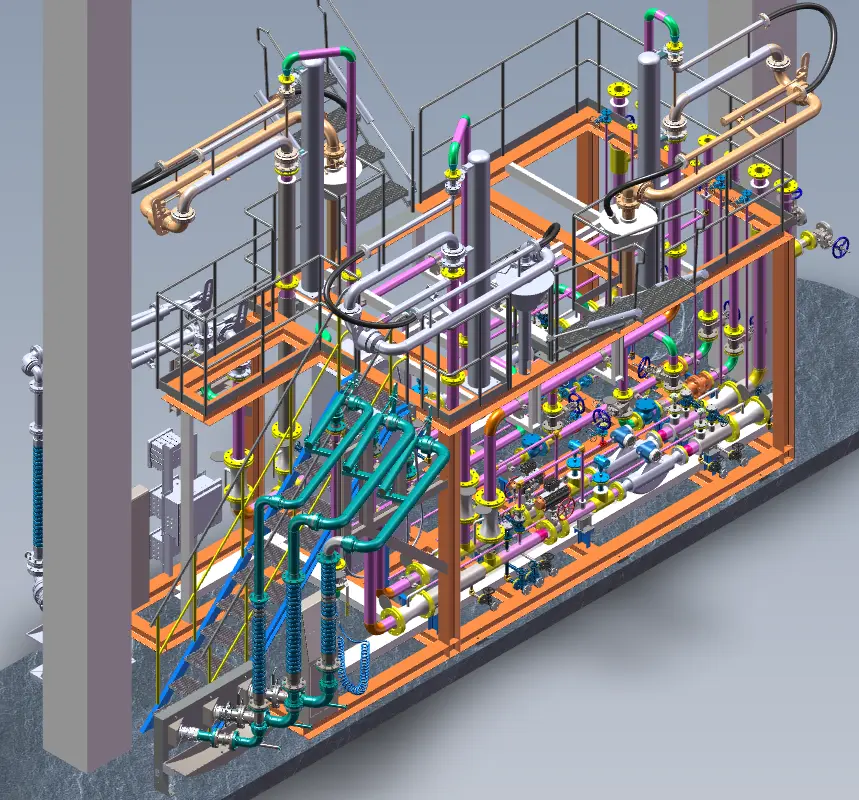

3D engineering model of a modular loading skid
3D Skid Arrangement
Metering Performance

Accuracy Supported at Every Level

Measurement performance depends on the meter, process conditions, piping design, valve behavior, control logic and calibration strategy. MDOW coordinates these elements as one system.

Values shown are design targets stated in the supplied loading-system presentation. Guaranteed performance and applicable standards are confirmed for each project.

≤ ±0.2%Metering accuracy target stated in source material
≤ ±5 kgBatch control accuracy target stated in source material
API / OIMLDynamic-measurement references noted in source material
ISO / GB/TAdditional measurement references noted in source material
Installed Systems

From Digital Model to Operating Terminal

The supplied project material shows modular metering and valve packages installed beneath loading structures, with loading arms, field panels and operator access coordinated around the bay.

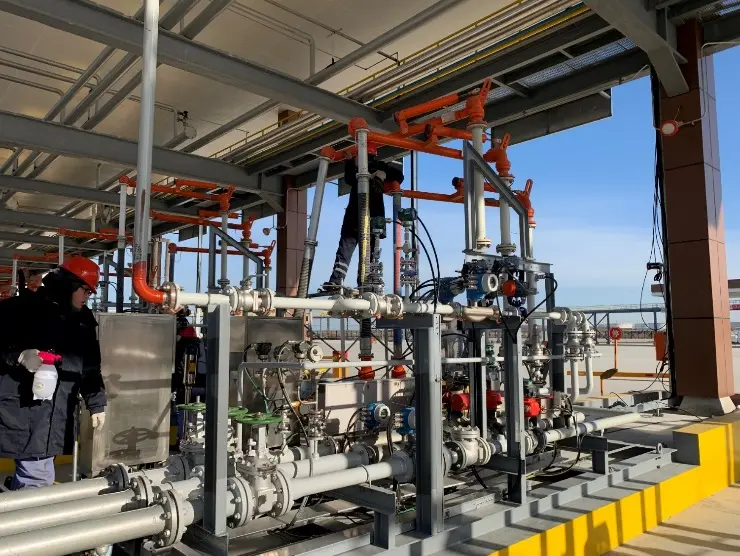

Modular truck loading skid installed beneath a terminal canopy
Integrated loading skid and loading-arm installation

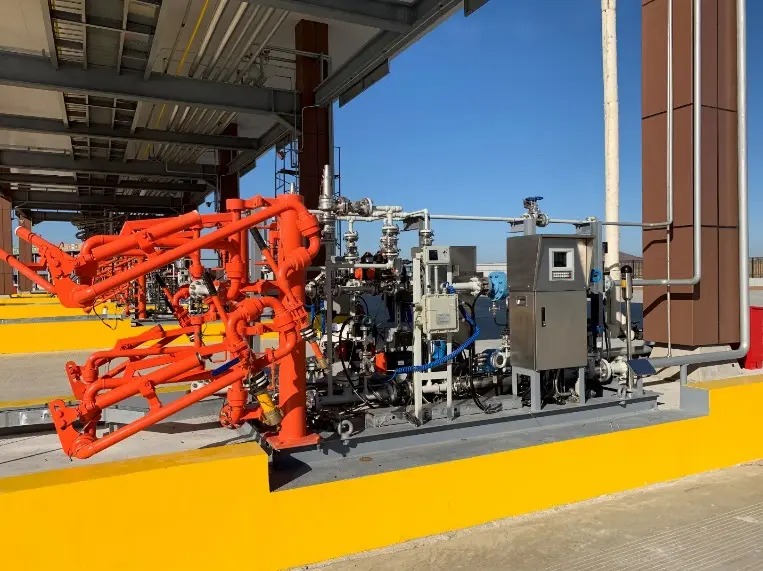

Truck loading skid with folded loading arms
Compact equipment arrangement for bay operation

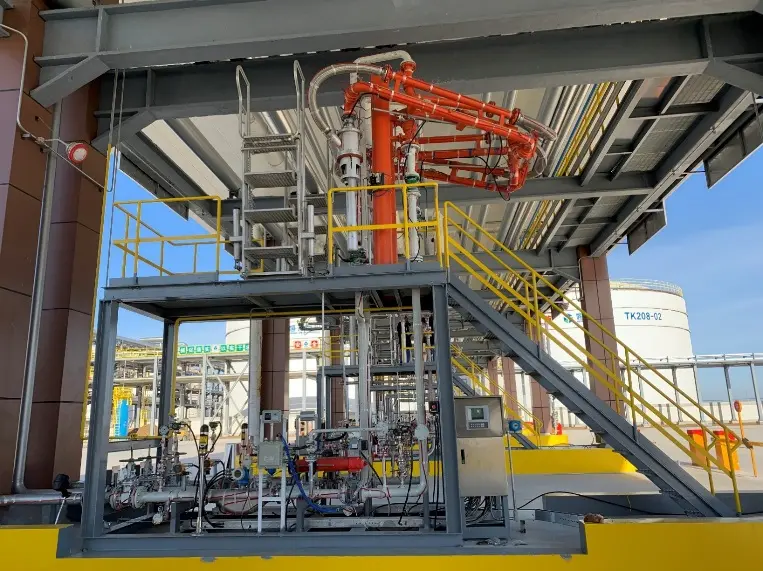

Elevated loading platform and metering skid
Field installation with structural and access interfaces
Project Inquiry

Define Your Loading / Offloading Package

Share the fluid, loading rate, number of bays, hazardous-area classification, metering requirements and terminal-system interfaces. MDOW will configure the modular package around your operating sequence.

Request a Proposal →Back to Flow Metering
