Mobile Master-Meter SkidPortable verification package for multiple metering locations
Home › Flow Metering Solutions › Jetty & Pipeline Transfer
Marine & Pipeline Metering Systems
Custody Measurement & VerificationJETTY & PIPELINE
TRANSFER
Integrated mass-flow metering packages for marine bunkering, terminal transfer and pipeline applications—from the primary meter and flow computer to master-meter verification and terminal data interfaces.
Endress+Hauser Core Measurement Products & Technologies + MDOW Modular Engineering & Integration
Accurate Transfer. Verifiable Performance.Engineered for reliable measurement across jetty, pipeline and terminal operations.
◎Mass-Flow
Measurement
Measurement
▣Flow
Computing
Computing
✓Master-Meter
Verification
Verification
↔Marine &
Pipeline Duty
Pipeline Duty
◇Modular
Skid Delivery
Skid Delivery
∑Terminal
Mass Balance
Mass Balance
Technology CooperationMDOW works with Endress+Hauser to deliver modular metering systems.
We use Endress+Hauser core measurement products and technologies, integrated with MDOW process design, skid engineering, fabrication coordination, automation interfaces and project delivery.
E+H Core Technology
MDOW Package Integration
MDOW Package Integration
Complete Transfer Package
Built Around the Measurement Duty
A jetty or pipeline metering package must connect accurate measurement with the actual transfer operation. MDOW coordinates the primary instrumentation, flow computer, valves, piping, structural arrangement and data interfaces as one modular system.
Coriolis mass-flow measurement for transferred quantity and density.
Flow-computer integration for calculation, records and communication.
Pressure and temperature instrumentation for operating visibility.
Optional regulating valve for controlled transfer conditions.
Skid piping and layout engineered around the terminal interface.
Master-meter provisions for traceable working-meter verification.
Marine Fuel Metering
Core Instruments, One Metering Skid
The marine fuel metering arrangement presented in the supplied Endress+Hauser material combines the principal devices required to measure, monitor and document transfer on a compact skid.
MASS FLOWMETERPrimary measurement of mass flow and density.
FLOW COMPUTERCalculations, transaction records and system communication.
PRESSUREMonitoring of transfer conditions and equipment status.
TEMPERATUREProcess visibility and supporting measurement data.
CONTROL VALVEOptional regulation around the required operating profile.
SKID PACKAGEIntegrated piping, support, access and project interfaces.

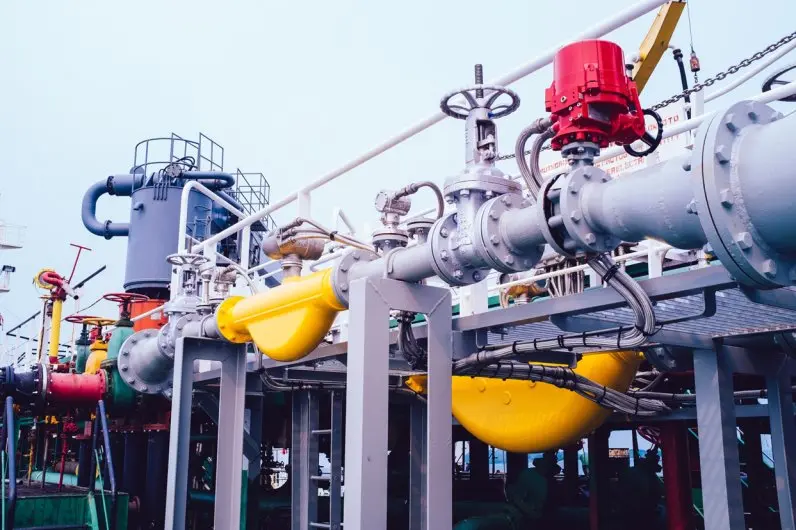

Marine Fuel Metering PackageIntegrated flow, pressure, temperature and control components
Bidirectional Marine TransferCompact LPG loading and unloading configuration

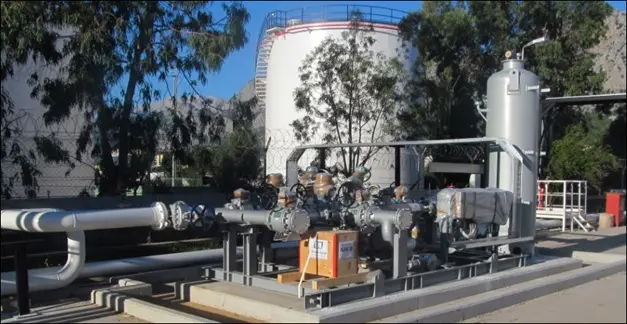

Bidirectional Ship Loading / Unloading
One Skid for Both Transfer Directions

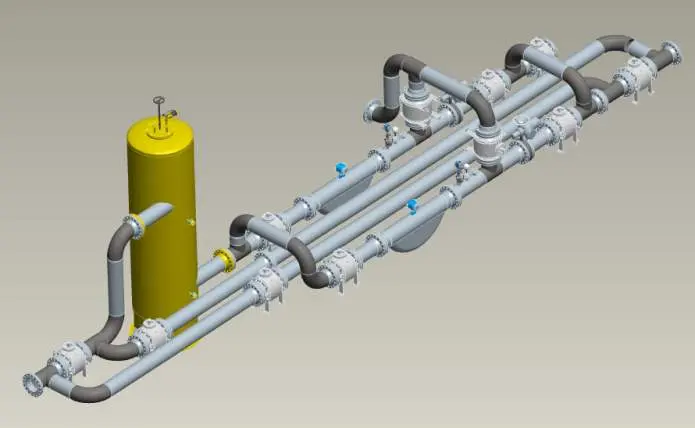

A reference European LPG terminal required custody-transfer measurement for both ship loading and ship unloading within a restricted existing footprint. The solution used a common air eliminator, two parallel full-capacity 10-inch metering streams and a complete 100% bypass.
2 × 100% StreamsFull-capacity duty and standby metering paths.
Bidirectional OperationValving and calculation logic arranged for both transfer directions.
Prover ConnectionsVerification connections provided for duty and standby meters.
Panel-Mounted Flow ComputerCentralized transaction calculation, control and records.
Common Air EliminatorShared upstream conditioning for stable liquid measurement.
Compact FootprintArrangement optimized for an existing constrained terminal area.
Configuration details above describe the reference LPG project presented in the supplied Endress+Hauser material.
Master Meter Solution
Verify Working Meters Without a Large Prover
A master-meter skid provides a compact reference for field verification. The reference meter is factory calibrated with liquid and can be arranged as a fixed installation or a mobile trailer package.
Direct mass-flow verification
Factory liquid calibration
Compact installation footprint
Lower initial and maintenance burden
Fixed or mobile configuration
Applicable across multiple transfer duties

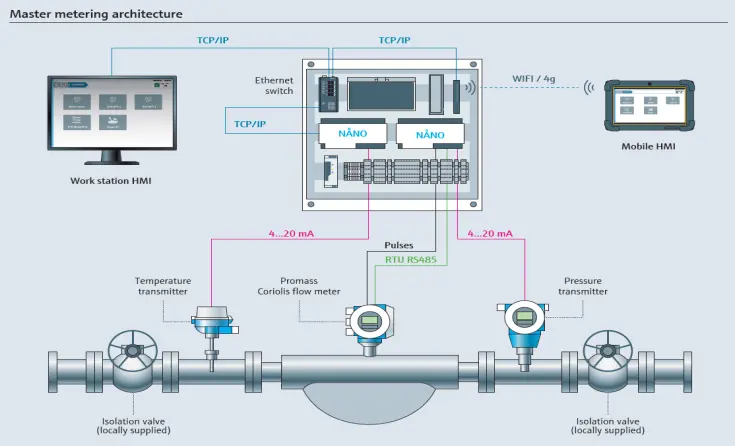

Master-Meter Verification Architecture
Measurement References
Designed for Traceable Verification
The supplied solution material identifies internationally recognized references for master-meter verification and marine fuel measurement. Final applicable standards, uncertainty targets and verification procedures are confirmed for each project.
OIML R117Dynamic measuring systems for liquids other than water.
API MPMS 4.5Master-meter proving practice referenced in the source material.
SS 660Singapore standard associated with mass-flow-meter bunkering.
TR 80Singapore technical reference identified in the supplied case material.
References reflect the supplied Endress+Hauser presentation. Contract standards, editions and certification requirements remain project-specific.
Flexible Deployment
Fixed Skid or Mobile Verification Package
A master-meter system can support marine terminals, fuel transfer, chemical plants, pipelines, refineries, oilfields, LACT systems and truck or rail loading. Packaging is selected around access, connection, verification frequency and site operating constraints.
Define the Verification Duty →

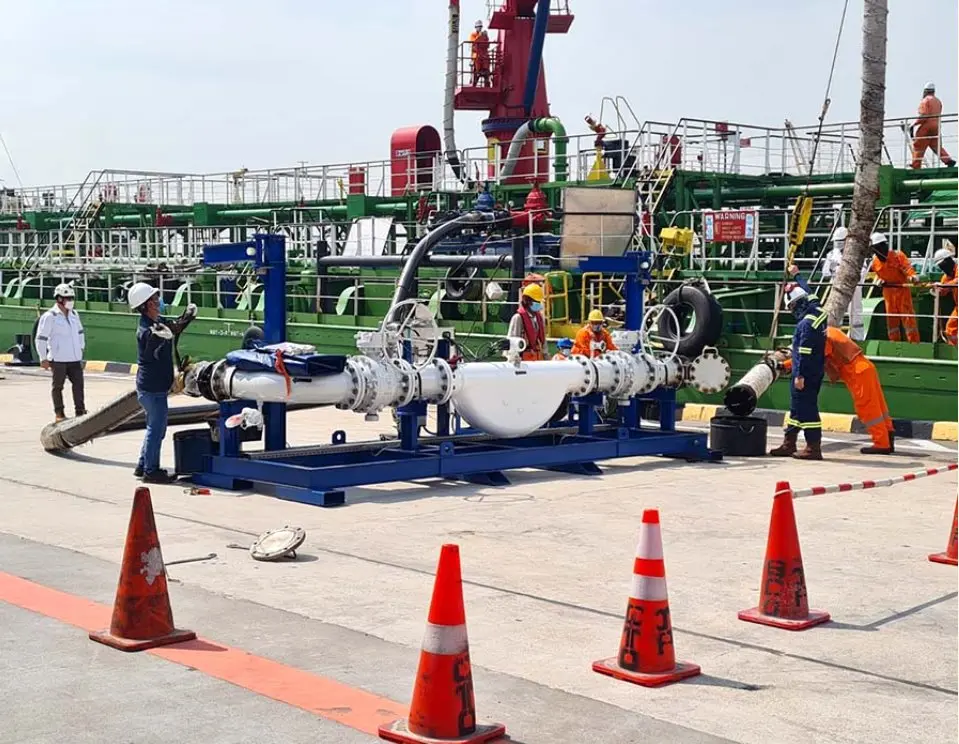

Field VerificationTemporary connection to an operating transfer system
Reference Application

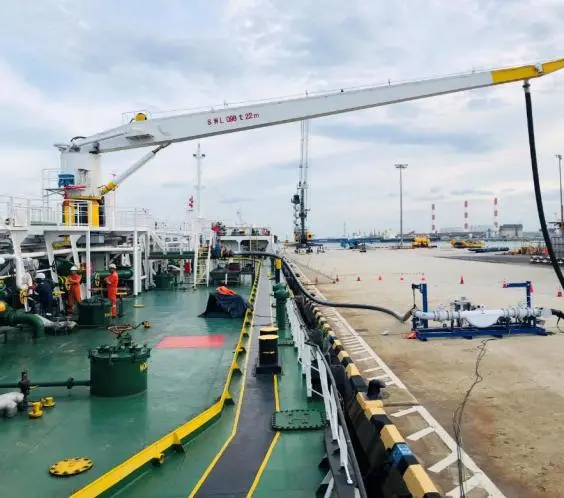

Marine Bunkering Measurement
The supplied presentation highlights a Singapore marine-fuel mass-flow-meter application in which the master-meter approach supported more than 100 working-meter verifications. The example demonstrates how a compact reference system can reduce field time and simplify coordination among operators and oversight organizations.
>100Working-meter verifications stated in the reference material
Marine FuelMass-flow-meter bunkering application

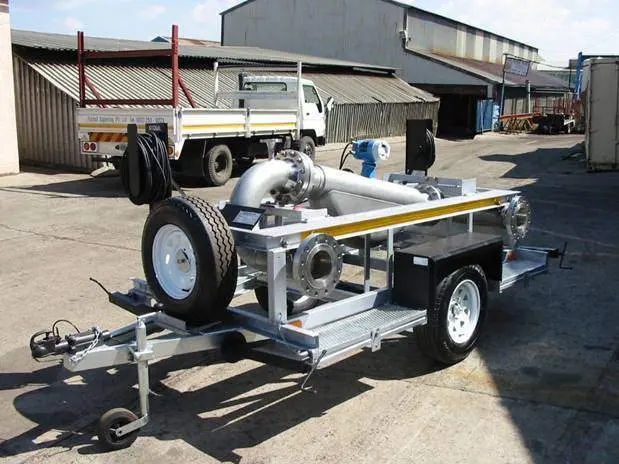

Mobile CapabilityReference package can be moved between locations
Traceable WorkflowCalibration, comparison and verification records
Port-Scale Metering Infrastructure
Beyond a Single Skid
A large East African port project in the supplied reference material shows how flow metering expands into a complete terminal system: multiple liquid metering skids, proving equipment, control rooms, pigging facilities and product-recovery systems coordinated across several ports.
17Metering skids
29Metering lines
3Control rooms with flow computers, UPS, MCC and F&G
4Trailer-mounted small-volume provers
8Pig launchers and receivers
3Oil/water separator and slop-tank systems

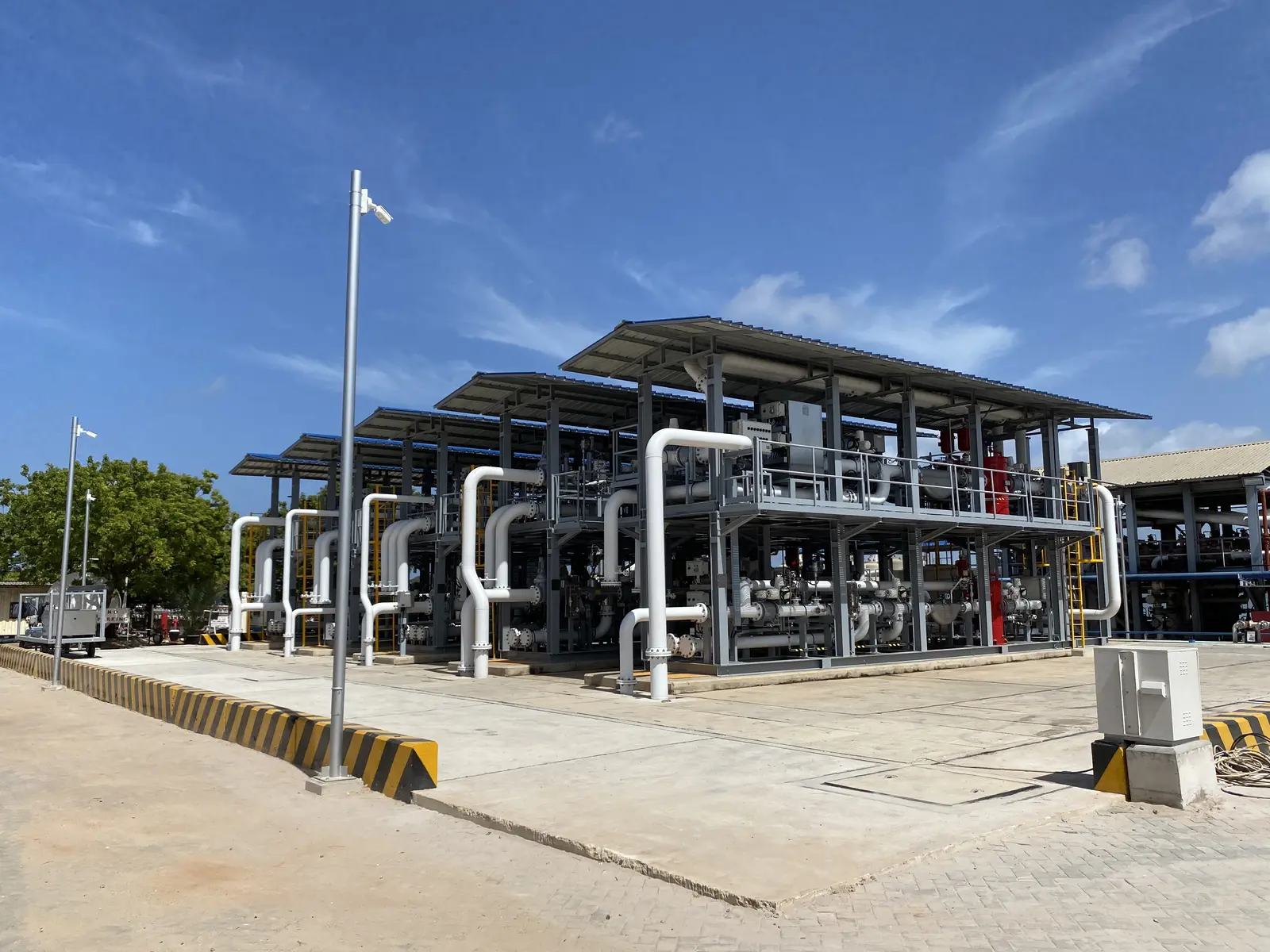

Complete Port Metering StationIntegrated transfer, proving and terminal interfaces

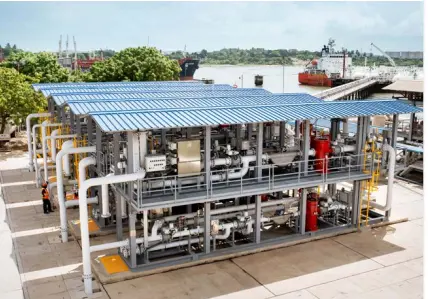

Multi-Product SkidGasoline, diesel, Jet A-1, kerosene, lube oil, HFO, edible oil and LPG duties

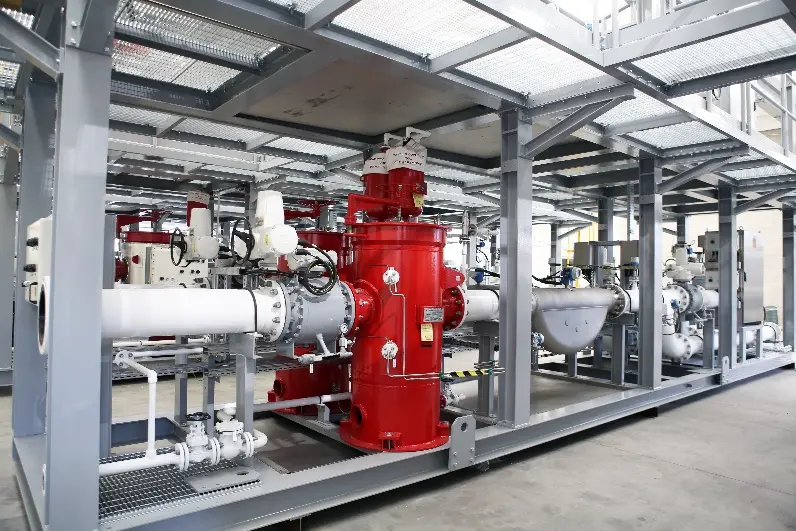

Product ConditioningAir elimination and piping integration
Quantities describe the documented Tanzania reference project and are presented as evidence of system-integration scale, not as a standard package configuration.
Gas & LNG Custody Transfer

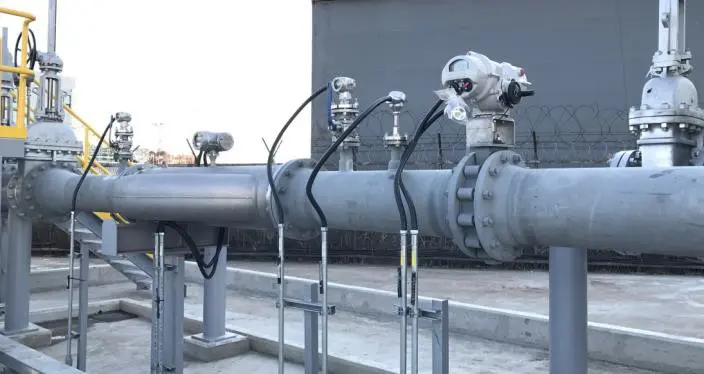

High-Pressure Pipeline Metering
For LNG import terminals and compressor stations, the measurement platform extends from liquid Coriolis systems to multi-stream ultrasonic gas metering. The reference systems combine Endress+Hauser SICK FLOWSIC600 meters with gas-quality analysis, flow computing, supervisory functions and PLC control.

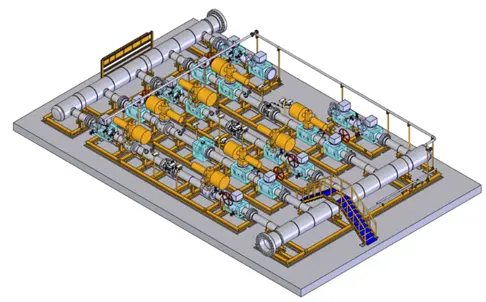

Multi-Stream Gas Metering Architecture
Ultrasonic MeteringFLOWSIC600 measurement for high-pressure natural-gas custody transfer.
Gas ChromatographComposition and energy-data input for commercial measurement.
Total Sulfur AnalysisGas-quality monitoring integrated with the station package.
H₂O / Hydrocarbon Dew PointCondition monitoring for gas quality and pipeline protection.
Flow ComputersPer-stream calculation, correction and transaction records.
Supervisory + PLCStation monitoring, sequencing, communications and control.

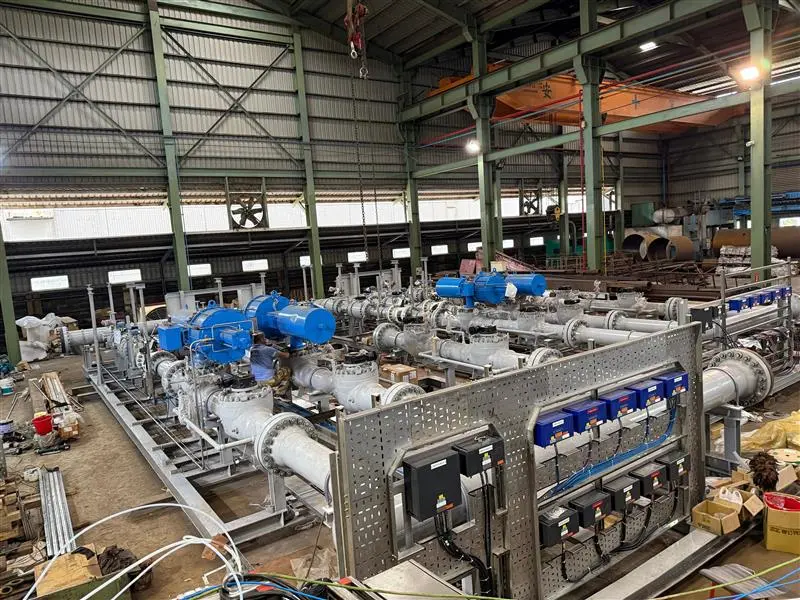

TAIWAN REFERENCELNG Import TerminalMultiple metering packages engineered and fabricated for terminal service.

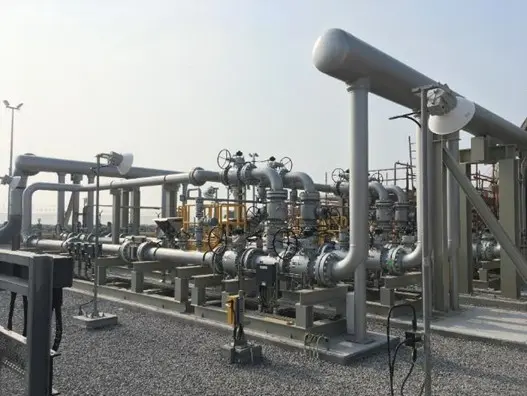

BAHRAIN REFERENCEFive-Stream LNG Metering10-inch Class 600 system with gas-quality analysis, flow computing and PLC supervision.

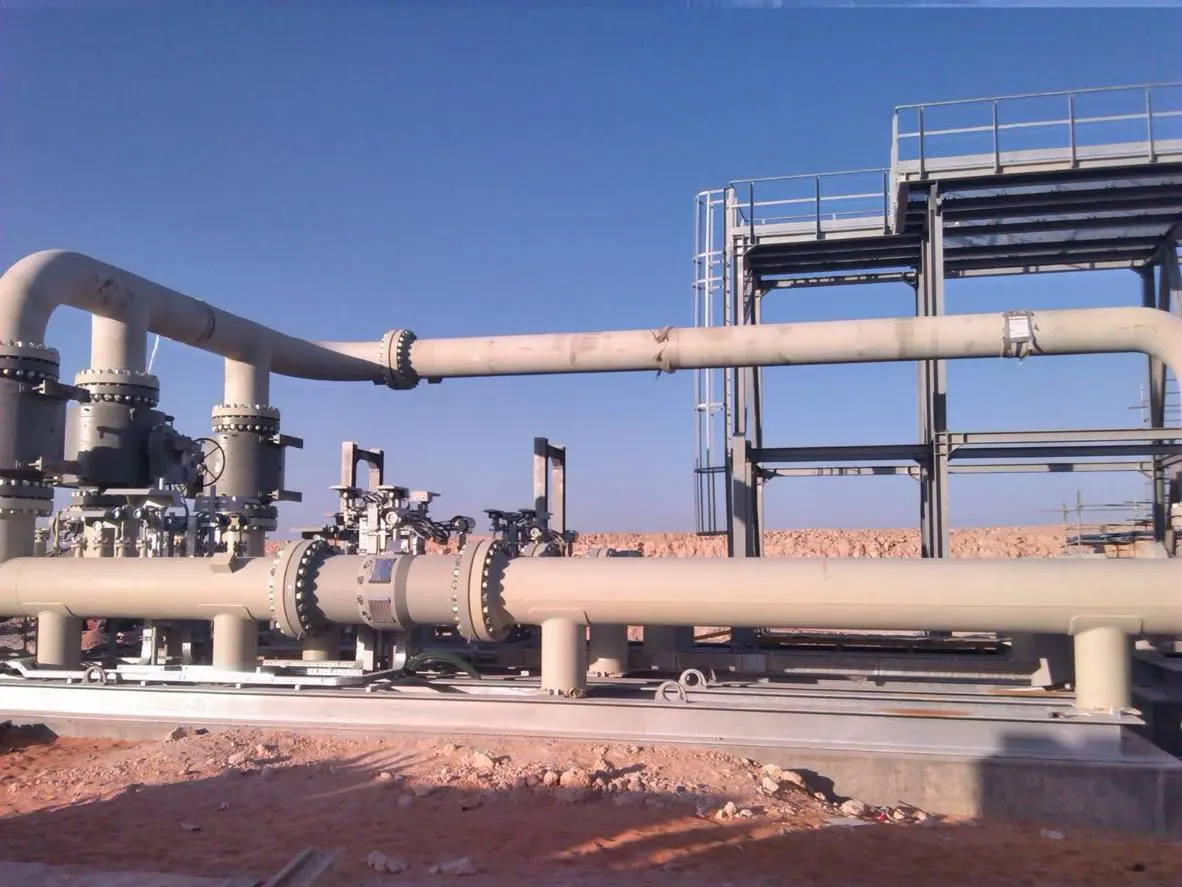

ALGERIA REFERENCECompressor-Station MeteringFour 20-inch Class 600 streams for high-flow custody-transfer service.
Reference sizes, pressure classes, flow rates and analytical scope are project-specific. Final configuration is selected from the contractual gas composition, operating envelope and metering-code requirements.
Terminal Mass Balance
Connect Every Transfer Point
Reliable inventory control depends on consistent measurement across the terminal. Jetty and pipeline transfer, tank gauging, and truck or rail loading data can be coordinated to compare physical stock movement with recorded loading operations.
01 INBOUND / OUTBOUNDJetty & Pipeline Transfer
02 PHYSICAL STOCKTank Gauging
03 BOOK STOCKLoading / Offloading
Project Inquiry
Define Your Jetty or Pipeline Metering Package
Share the product, flow range, transfer duty, custody requirements, verification method, hazardous-area classification and terminal interfaces. MDOW will configure the system around Endress+Hauser core measurement technology.
