Analyzer Systems & Emissions Monitoring
ANALYZER /
CEMS PACKAGES
Integrated packages that bring sample extraction, conditioning, measurement, utilities, shelter systems and data interfaces together as one engineered solution.
Explore the System →Engineered • Integrated • Factory Tested
01Gas Analysis
02Process Chromatography
03Continuous Emissions Monitoring
04Analyzer Shelters & Utilities
Complete Measurement Chain
From Sample Point to Reported Value
Reliable measurement depends on more than the analyzer. The complete package is developed around the process conditions, target components, response time, hazardous-area requirements and plant data architecture.
Condition
Filters, coolers, separators, regulators and flow controls prepare the sample for stable measurement.
Analyze
Selected analyzers or chromatographs measure the required gas, emission or water-quality parameters.
Report & Control
Signals, alarms and diagnostics interface with PLC, DCS or data acquisition and reporting systems.

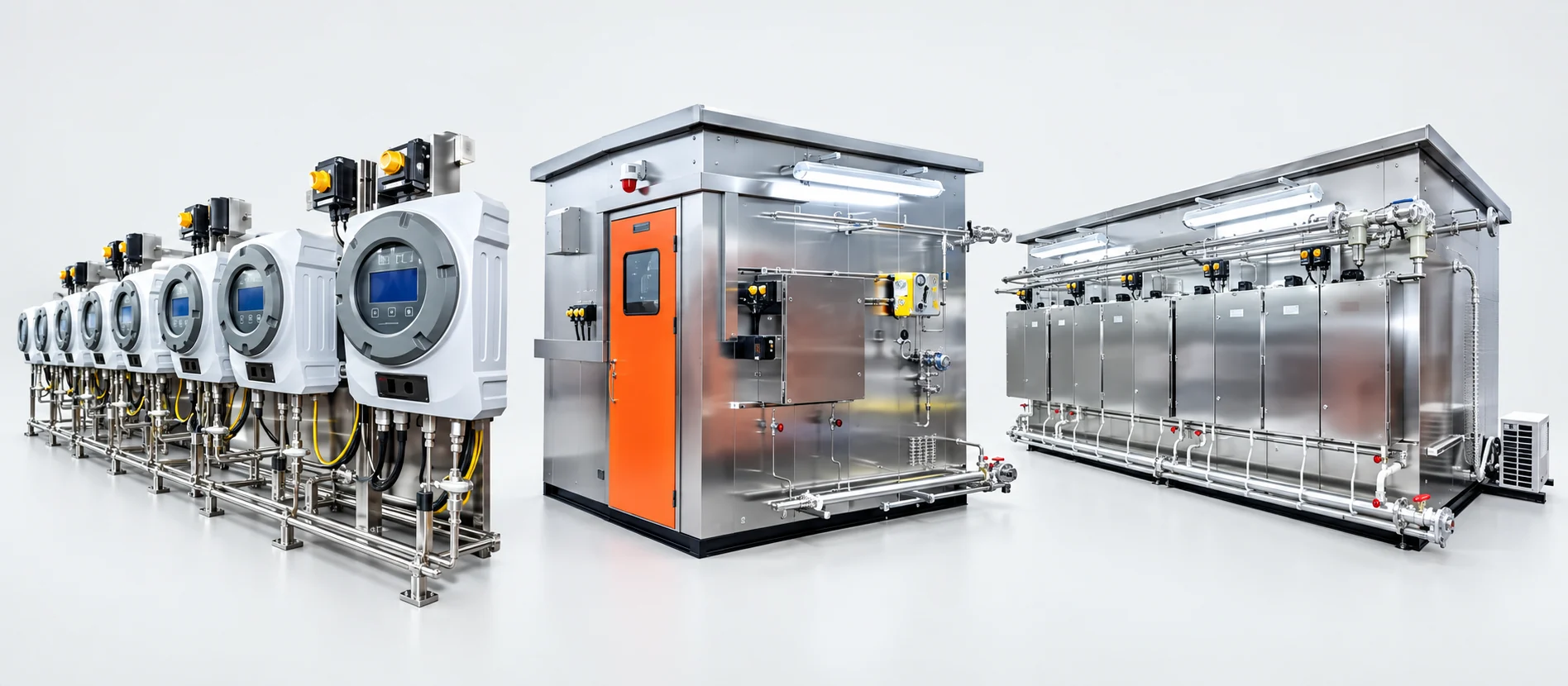

Integrated Analyzer Shelters
A Controlled Environment for Critical Measurement
An analyzer shelter is engineered as part of the measurement system—not simply as an enclosure. Its layout and services are developed from the stream conditions, analyzer heat load, ambient environment, hazardous-area classification, maintenance strategy and plant interface requirements.
- Insulated or stainless-steel enclosure
- Duty / standby HVAC where required
- Pressurization, purge and ventilation
- Instrument air and utility manifolds
- Gas, smoke and heat detection
- Accessible cabinet and work areas
Design Basis
Ambient temperature and humidity, dust and corrosion category, hazardous-area classification, wind, snow and seismic loads, access philosophy and required analyzer availability.
Sample Integrity
Probe and transport-line selection, heat tracing, dew-point control, filtration, pressure and flow regulation, fast-loop design, calibration gas distribution, vents and drains.
Utilities & Safety
Power distribution, UPS, lighting, grounding, HVAC heat-load control, clean instrument air, LEL / toxic / oxygen detection, alarms, ventilation trips and emergency shutdown interfaces.
Controls & Data
Local PLC and HMI, analyzer diagnostics, sequence and alarm handling, hardwired or network interfaces, time synchronization and integration with DCS, DAS or reporting platforms.
Factory Verification Before Shipment
Typical checks include tubing leak tests, electrical continuity and insulation tests, loop checks, alarm and interlock simulation, HVAC operation, calibration routines, analyzer response tests, communications verification and review of turnover documentation.
Measurement Technologies
Configured Around the Process Duty
The package architecture can combine different measurement principles and equipment families according to the application, required accuracy and operating environment.

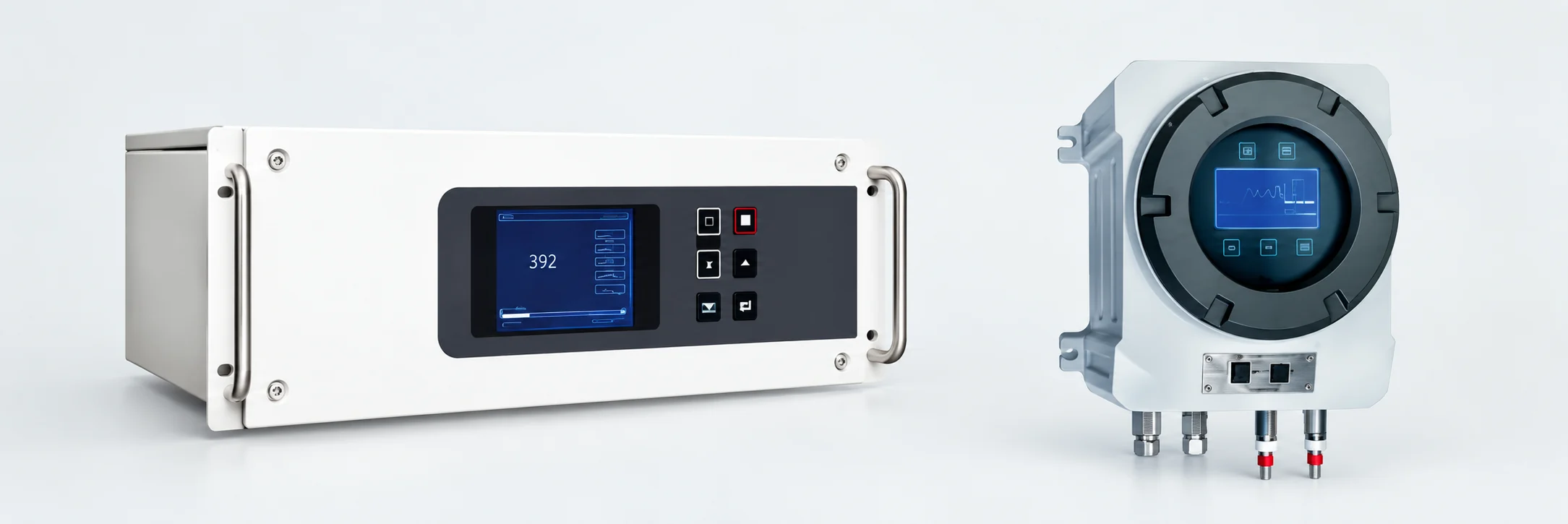

Online Gas Analyzers
Infrared, ultraviolet, thermal-conductivity, paramagnetic oxygen, trace oxygen and moisture measurement options for continuous process analysis.
PA500 • PA600Ex • PA560 • LA300 • PA700

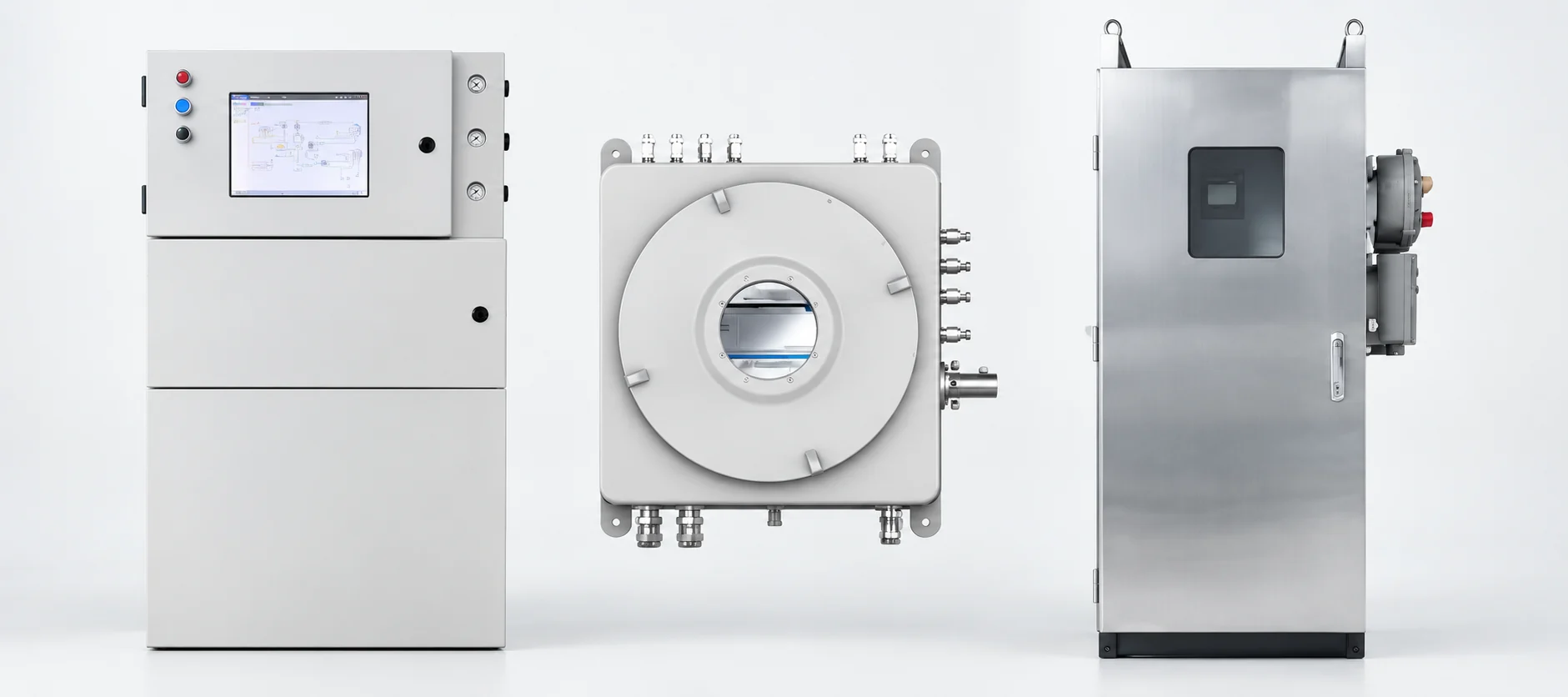

Process Chromatography
Industrial process gas chromatography and coordinated analysis systems for composition measurement, quality control and process optimization.
PGC-600 • SC-8200 • SC-8000 • PS7000 SERIES

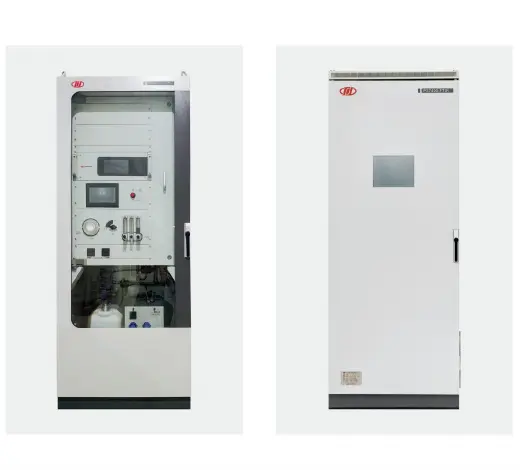

CEMS & Process Monitoring
Continuous measurement of gaseous pollutants and particulate concentration, supported by sample handling, cabinet integration and data interfaces.
PS7400 CEMS • DT600 / DT600Ex • PROCESS-SPECIFIC SYSTEMS

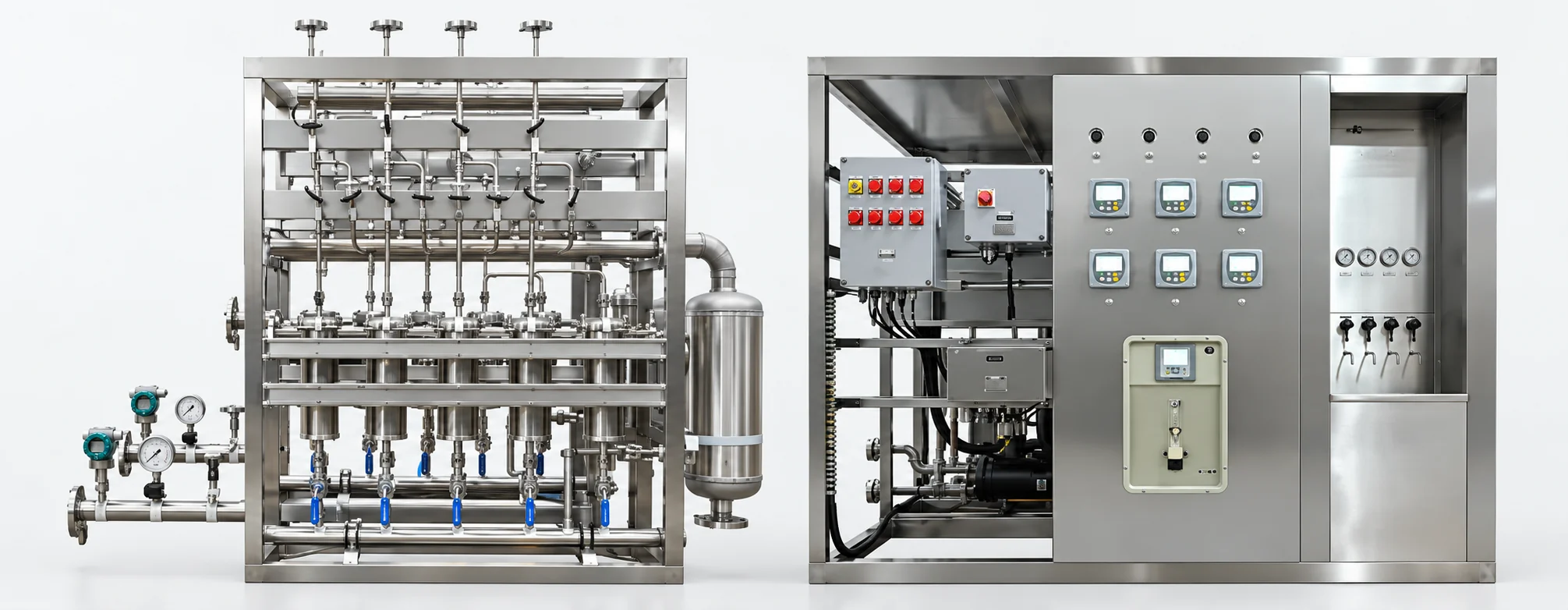

Water Quality Analysis
Packaged sampling and analysis for conductivity, pH/ORP, sodium, silica, phosphate, hydrazine and continuous wastewater monitoring.
7091 SERIES • WS2000 • WS3000 • LEX2000 / LEX2000Ex
Representative product families shown from the supplied technical reference material. Final configuration is project-specific.
Typical Integrated Scope
One Coordinated Package
MDOW can coordinate mechanical, electrical and controls interfaces so the complete package arrives ready for efficient site connection.
Sample & Conditioning
- Sample probes and heated lines
- Filters, coolers and separators
- Pumps, ejectors and flow control
- Calibration, purge and validation
- Tubing, manifolds and drains
Analyzer & Shelter
- Analyzer and cabinet integration
- HVAC, lighting and power distribution
- Safety detection and alarms
- PLC / DCS / DAS interfaces
- FAT records and turnover documents
Define the Measurement Duty.
We will help develop the package around your stream conditions, target components and site interfaces.
